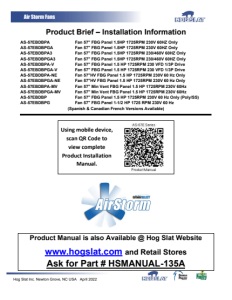

Hog Slat Inc. Newton Grove, NC USA April 2022 Air Storm Fans Product Brief – Installation Information AS-57EBDBPA Fan 57" FBG Panel 1.5HP 1725RPM 230V 60HZ Only AS-57EBDBPGA Fan 57" FBG Panel 1.5HP 1725RPM 230V 60HZ Only AS-57EBDBPA3 Fan 57" FBG Panel 1.5HP 1725RPM 230/460V 60HZ Only AS-57EBDBPGA3 Fan 57" FBG Panel 1.5HP 1725RPM 230/460V 60HZ Only AS-57EBDBPA-V Fan 57" FBG Panel 1.5 HP 1725RPM 230 VFD 1/3P Drive AS-57EBDBPGA-V Fan 57" FBG Panel 1.5 HP 1725RPM 230 VFD 1/3P Drive AS-57EBDBPA-NE Fan 57"HV FBG Panel 1.5 HP 1725RPM 230V 60 Hz Only AS-57EBDBPGA-NE Fan 57"HV FBG Panel 1.5 HP 1725RPM 230V 60 Hz Only AS-57EBDBPA-MV Fan 57" Min Vent FBG Panel 1.5 HP 1725RPM 230V 60Hz AS-57EBDBPGA-MV Fan 57" Min Vent FBG Panel 1.5 HP 1725RPM 230V 60Hz AS-57EBDBP Fan 57" FBG Panel 1.5 HP 1725RPM 230V 60 Hz Only (Poly/SS) AS-57EBDBPG Fan 57" FBG Panel 1-1/2 HP 1725 RPM 230V 60 Hz (Spanish & Canadian French Versions Available) Using mobile device, scan QR Code to view complete Product Installation Manual. Product Manual is also Available @ Hog Slat Website www.hogslat.com and Retail Stores Ask for Part # HSMANUAL-135A
Hog Slat Inc. Newton Grove, NC USA April 2022 2 Air Storm Fans Exploded Diagrams/Replacement Parts Item Key Replacement Part Number Description FAN 1 HSFP-5731S Prop 3 Blade 56.25" Diameter SS AS-57EBDBPA AS-57EBDBPA3 AS-57EBDBPA-V AS-57EBDBPA-NM ASC-57EBDBPA ASC-57EBDBPA3 ASC-57EBDBPA-V ASC-57EBDBPA-NM AS-57EBDBPA-NE AS-57EBDBPA-MV AS-57EBDBP 1 HSFP-5731G Prop 3 Blade 56.25" Diameter Galvanized AS-57EBDBPGA AS-57EBDBPGA3 AS-57EBDBPGA-V AS-57EBDBPGA-NM ASC-57EBDBPGA ASC-57EBDBPGA3 ASC-57EBDBPGA-V
Hog Slat Inc. Newton Grove, NC USA April 2022 3 Air Storm Fans ASC-57EBDBPGA-NM AS-57EBDBPFA-NE AS-57EBDBPGA-MV AS-57EBDBPG 5 UCP20516G5 Bearing 1" Pillow Block Standard 2 Set Screws ALL 7 HS9014D Motor 1.5 HP 1725 RPM 50/60 Hz 1 PH 208-230V 1.2 SF ALL EXCEPT BELOW 7 HS9314 Motor 1.5 HP 1725 RPM 208-230/460V 3 Ph 60 Hz TEAO AS-57EBDBP3A AS-57EBDBPG3A ASC-57EBDBP3A ASC-57EBDBPG3A 7 HS9314-VFD Motor 2 HP 1725 RPM 208-230/460V 3 Ph 60 Hz TEAO VFD Compat AS-57EBDBPA-V AS-57EBDBPGA-V ASC-57EBDBPA-V ASC-57EBDBPGA-V 8 HS903-3 Tensioner Rotary Assembly With Splash Guards ALL 9 PAK3058 Pulley AK30-5/8 ALL EXCEPT BELOW 9 PAK3258 Pulley AK32-5/8 AS-57EBDBPA-NE AS-57EBDBPGA-NE PAK2858 Pulley AK25 5/8" Bore AS-57EBDBPA-MV AS-57EBDBPGA-MV 10 PAK991 Pulley AK99-1 ALL 14 WS901-57D Butterfly Assembly 57" Fan ALL 16 AS-57305P Panel Cone 57" Poly Black ALL 17 HS902-57E Guard Prop 57" Fan ALL N/S GAX49 Belt V 1/2" X 51" Hi-Power Gates ALL N/S WS903-57 Spring Butterfly 2X 57D ALL N/S HSFI-1002 Inverter Frequency 2HP 240V 0-500Hz NEMA4X Outdoor AS-57EBDBPA-V AS-57EBDBPGA-V ASC-57EBDBPA-V ASC-57EBDBPGA-V
Hog Slat Inc. Newton Grove, NC USA April 2022 4 Air Storm Fans Hog Slat Limited Warranty Hog Slat warrants products to be free from defects in material or workmanship for a period of twenty-four (24) months from the date of original purchase. Hog Slat will credit, repair, or replace, at its option any product deemed defective within this time period. Labor costs associated with the replacement or repair of the product are not covered by the Seller/Manufacturer. AS-57EBDBP-NM Fan 57" FBG Panel No Motor 60HZ Only (Non GrowerSelect Product) AS-57EBDBPG-NM Fan 57" FBG Panel No Motor 60HZ Only (Non GrowerSelect Product) Conditions and Limitations 1. The product must be installed by and operated in accordance with the instructions published by the Seller/Manufacturer or Warranty will be void. 2. Warranty is void if all components are not original equipment supplied by the Seller/Manufacturer. 3. This product must be purchased from and installed by an authorized retailer/distributor or certified representative thereof or the Warranty will be void. 4. Malfunctions or failure resulting from misuse, abuse, negligence, alteration, accident, or lack of proper maintenance shall not be considered defects under the Warranty. 5. This Warranty applies only to components/systems for the care of poultry and livestock. Other applications in industry or commerce are not covered by this Warranty. 6. This Warranty applies only to the Original Purchaser of the product. The Seller/Manufacturer shall not be liable for any Consequential or Special Damage which any purchaser may suffer or claim to suffer as a result of any defect in the product. “Consequential” or “Special Damages” as used herein include, but are not limited to, lost or damaged products or goods, costs of transportation, lost sales, lost orders, lost income, increased overhead, labor and incidental costs and operational inefficiencies. THIS WARRANTY CONSTITUTES THE SELLER/MANUFACTURER’S ENTIRE AND SOLE WARRANTY AND THIS MANUFACTURER EXPRESSLY DISCLAIMS ANY AND ALL OTHER WARRANTIES, INCLUDING, BUT NOT LIMITED TO, EXPRESS AND IMPLIED WARRANTIES AS TO MERCHANTABILITY, FITNESS FOR PARTICULAR PURPOSES SOLD AND DESCRIPTION OR QUALITY OF THE PRODUCT FURNISHED HEREUNDER. Hog Slat Retailers/Distributors are not authorized to modify or extend the terms and conditions of this Warranty in any manner or to offer or grant any other warranties for GrowerSelect products in addition to those terms expressly stated above. An officer of Hog Slat must authorize any exceptions to this Warranty in writing. The Seller/Manufacturer reserves the right to change models and specifications at any time without notice or obligation to improve previous models. Part Number: HSMANUAL-292 Rev A2 Market: Hog & Poultry Rev A1 – Added QR Code Rev A3- Updated for new butterfly
