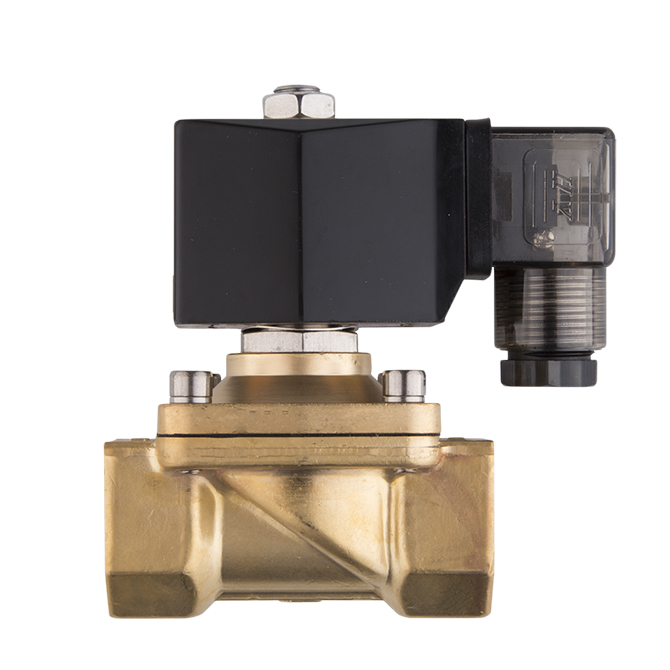

Direct acting solenoid valve automatically opens and shuts to control the fluid flowing through the pipe. This valve is designed to allow maximum flow rate in a low-pressure pipeline system. Recommended installation position is horizontal with coil facing upward.
• Direct acting vlave opens without pressure
• High quality rubber diaphram
• IP65 rated
Specifications:
| Working Pressure | 0-290 psi (0-20 bar) |
| Max Pressure Resistance | 232 psi (16 bar) |
| Applications | Compressed Air
Water
Gas |
| Max Viscosity | 20 cst |
Max Temperature
(NBR)
(KFM) |
176° F (80° C)
266° F (130° C) |
| Allowed Voltage Variation | 10% |
| Coil Protection | IP65 |
| Installation | Horizontally with coil facing upward |
