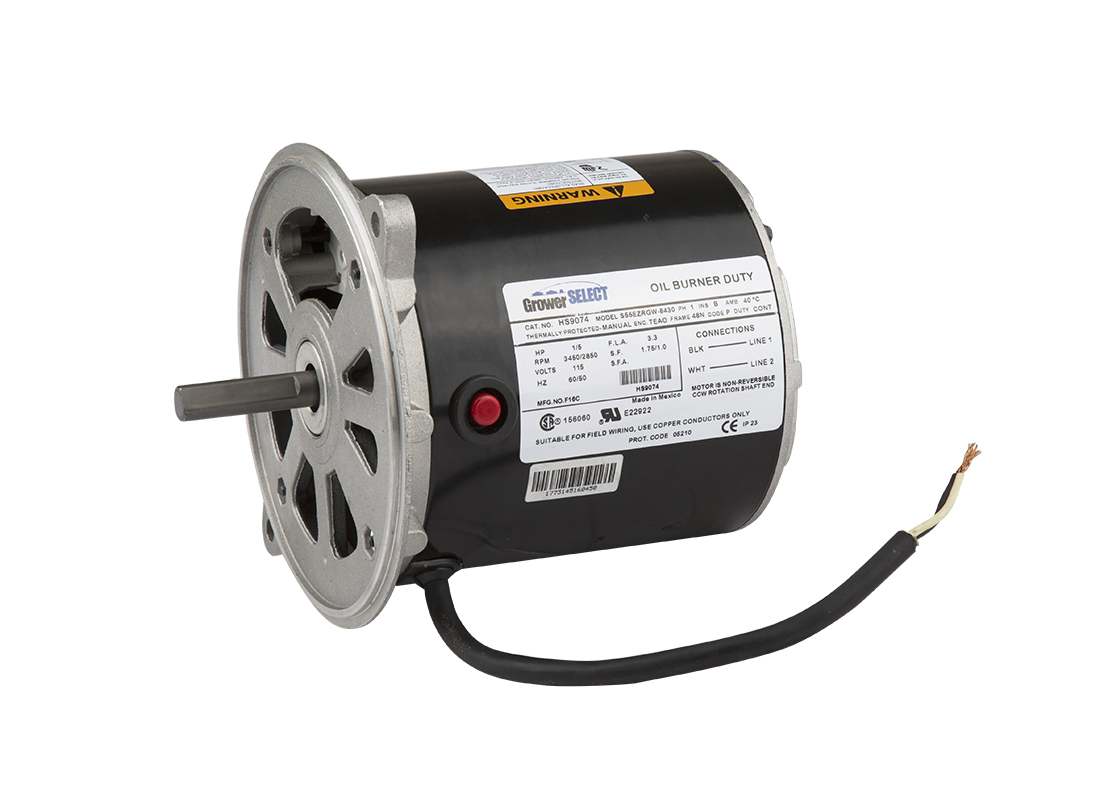

Grower SELECT® 1/5 HP Motor for Burn-Easy Incinerator

GrowerSELECT® 1/5 HP 115V replacement motor for Burn-Easy oil burner incinerators. Also works with Wayne® diesel burners (part #1 in the diagram).

Manufacturer: Grower Select®

SKU: HS9074

$174.01

Qty:

GrowerSELECT® 1/5 HP replacement motor for Burn-Easy oil burner incinerators. Motor is supplied with 10" 2 conductor 18 gauge cord. Motor flange holes are .344" diameter on 7.25" diameter. Also works with Wayne® diesel burners (part #1 in the diagram)
Replacement for Burn-Easy part number: 1201

HP	1/5
RPM	3450/2850
Hertz	60/50
Volts	115
Amps	3.3
Service Factor	1.75/1.0
Frame	48N
Speeds	Single
Protection	Manual
Drive Rotation	CCW
Connection	Cord/Leads
Motor Diameter	6.5 inches
Motor Length (w/ shaft)	8 inches
Weight	11.5 lbs
Shaft Diameter	1/2 inch
Shaft Length	2 inches
Shaft Configuration	Flat

*Use of manufacturer part number for reference purposes only

Overview
CA Prop 65 Warning
Reviews
Contact Us

HP	1/5
RPM	3450/2850
Hertz	60/50
Volts	115
Amps	3.3
Service Factor	1.75/1.0
Frame	48N
Speeds	Single
Protection	Manual
Drive Rotation	CCW
Connection	Cord/Leads
Motor Diameter	6.5 inches
Motor Length (w/ shaft)	8 inches
Weight	11.5 lbs
Shaft Diameter	1/2 inch
Shaft Length	2 inches
Shaft Configuration	Flat

*Use of manufacturer part number for reference purposes only

WARNING: This product can expose you to chemicals including Nickel, which is known to the State of California to cause cancer. For more information, go to www.P65Warnings.ca.gov.
