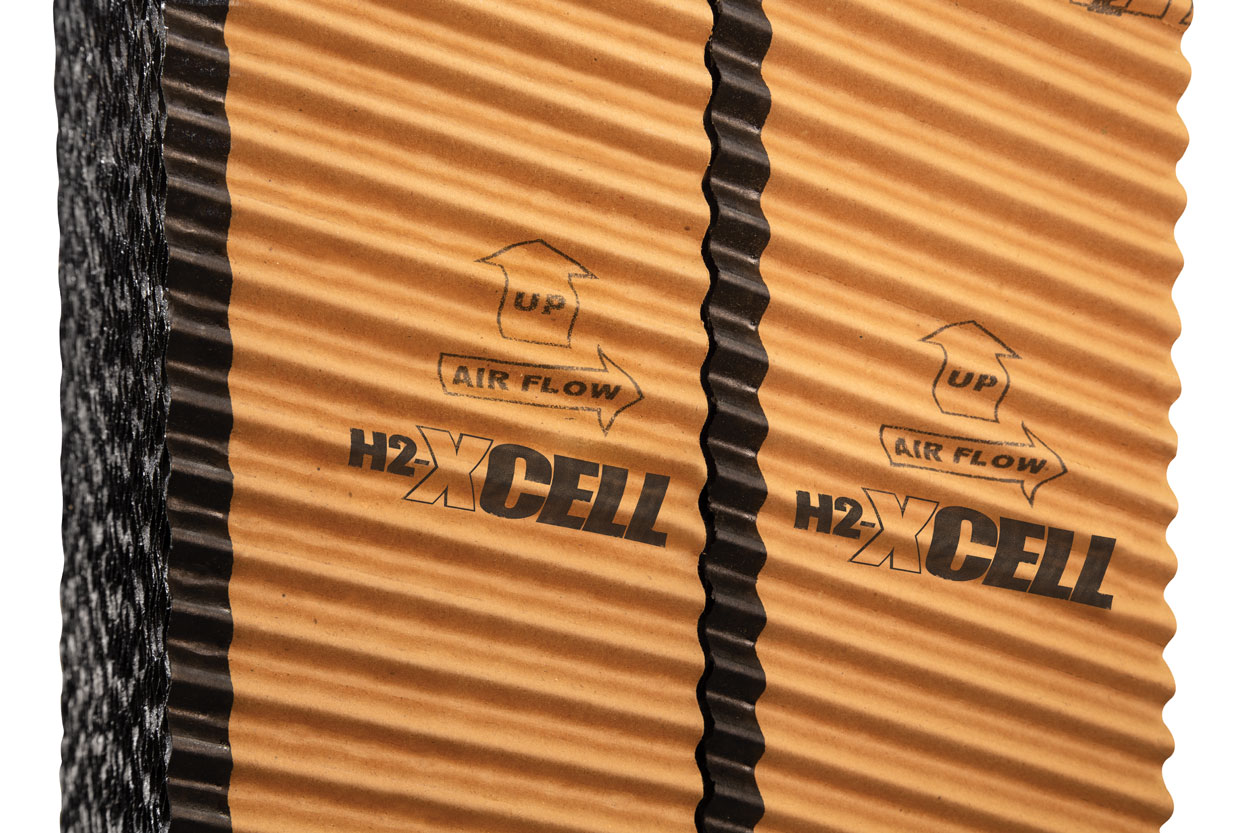

H2-XCELL Evaporative Cooling Pad w/ 2" Bottom Edge Guard | 6" x 72"

Exclusive 2' wide pad! Hog Slat’s H2-XCELL cool cell pad is manufactured from 100% Virgin Kraft Paper, oven-cured with acrylic polymer glue and fungicides for superior cooling performance and increased lifespan. 3/4" ProTech coating resists damage from UV light and mechanical cleaning processes.
Manufacturer: Hog Slat®
SKU: H2X-6624E-B-NC
$74.71
PRICE BREAKS - The more you buy, the more you save
Quantity
96+
216+
Price
$72.47
$70.23
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Built for the Extreme! Hog Slat’s H2-XCELL cool cell pad is manufactured from 100% Virgin Kraft Paper, oven-cured with acrylic polymer glue and fungicides for superior cooling performance and increased lifespan. 3/4" ProTech coating resists damage from UV light and mechanical cleaning processes.

Dimensions: 6"D x 24"W x 72"H

100% Virgin Kraft Paper
Offers structurally sound paper with great absorbency for maximum cooling efficiency.

3/4" ProTech Edging
Reinforces the pad face to prevent against damage from UV light, severe outdoor weather and mechanical cleaning processes. ProTech edging also prevents algae and mineral deposit build-up to help increase pad life.

2" ProTech Bottom Edge Guard Coating
Additional 2" of ProTech Edge Guard Coating applied to the bottom of each pad provides additional protection to the area of a cool cell pad in contact with the water trough collection area.

2 Foot Width
Offered exclusively in 2 foot widths providing a strong pad while reducing the total number of seams across the system's length.

15/45 Flute Design
Self-cleaning 15/45 flute design provides low-pressure drop on incoming air. Water enters the H2Pad at 45 degrees, steeper than the 15 degree angle of the incoming warm air. This creates more surface area for the air to make contact with the wet cells as it passes through, resulting in cooler air. A special wetting additive promotes even water distribution and reduces the amount of water collecting on the pad surface.

Contact us for truckload pricing and special sizes or configuration requirements!

Oversized Item: Freight calculations at checkout are an estimation only. We will contact you with exact freight costs after receiving your order.

Built for the Extreme! Hog Slat’s H2-XCELL cool cell pad is manufactured from 100% Virgin Kraft Paper, oven-cured with acrylic polymer glue and fungicides for superior cooling performance and increased lifespan. 3/4" ProTech coating resists damage from UV light and mechanical cleaning processes.

Dimensions: 6"D x 24"W x 72"H

100% Virgin Kraft Paper
Offers structurally sound paper with great absorbency for maximum cooling efficiency.

3/4" ProTech Edging
Reinforces the pad face to prevent against damage from UV light, severe outdoor weather and mechanical cleaning processes. ProTech edging also prevents algae and mineral deposit build-up to help increase pad life.

2" ProTech Bottom Edge Guard Coating
Additional 2" of ProTech Edge Guard Coating applied to the bottom of each pad provides additional protection to the area of a cool cell pad in contact with the water trough collection area.

2 Foot Width
Offered exclusively in 2 foot widths providing a strong pad while reducing the total number of seams across the system's length.

15/45 Flute Design
Self-cleaning 15/45 flute design provides low-pressure drop on incoming air. Water enters the H2Pad at 45 degrees, steeper than the 15 degree angle of the incoming warm air. This creates more surface area for the air to make contact with the wet cells as it passes through, resulting in cooler air. A special wetting additive promotes even water distribution and reduces the amount of water collecting on the pad surface.

Contact us for truckload pricing and special sizes or configuration requirements!

Oversized Item: Freight calculations at checkout are an estimation only. We will contact you with exact freight costs after receiving your order.

Although the H2-XCELL pads have been designed for the harshest of conditions and the most demanding applications, proper maintenance is still required to achieve maximum life of the evaporative pads. This includes but is not limited to allowing the pads to completely dry out once per 24-hour period; routine flushing of the water system and ensuring pads are not resting in standing water.
