Feed Chain Torture Chamber

One of the benefits we list for the Grow-Disk system is a “superior chain.”  The feed chain with molded plastic disks is the main component of the system, physically moving feed to a feeder or sow drop.

I dropped in on Hog Slat’s engineering group to see what I could find out.  I found Tim Hawkins, the project engineer for the Grow-Disk product line. Tim led me to a complicated looking run of 12 corners occurring in less than eight feet with intersecting vertical and horizontal corners.

Chain-Disk-torture-_blur.web

“The drive unit is off of it now,” Tim explained,  “but we ran different brands of chain through this setup to show accelerated wear. Look at this…..see the metal filings in the bottom of the corner? Those showed up when we ran the last batch of electroplated chain through the unit.  The process of electroplating weakens steel causing it to wear faster.”

Chain-Corner-w_-Filings_web

“This confirmed the difference between using hardened steel compared to galvanized or electroplated chain.  Hardened steel is high carbon steel given heat treatments of quenching followed by tempering.  The result is tough steel chain that resists wear without being brittle. We can run a hardened chain for days and never see filings like that.”

“With most chain feeding systems you have to adjust for “chain stretch” after the systems have operated for awhile.  We don’t think the individual chain links stretch but as they go around corners constantly rubbing together they elongate because of wear.”

Compare-three-chains_web

“The only reason, to galvanize steel, is to prevent rust.  With the fat and oils in the feed, the chain doesn’t rust in the tube.  Most brands of feeding chain is galvanized for it’s appearance before installation.  A new bag of Grow-Disk may have some surface rust on it, not a big deal.”

We next looked at how well the plastic disks are fastened to the chain.

“We placed each brand of chain link in a load cell and attached it to a winch, measuring the force needed to pull the disks off the link.”

Chain-Disk-link_web

“Most of the disks pulled off at 300 lbs., although one slipped at only 160 pounds!  We applied over 600 lbs. of force to the Grow-Disk disk before it slipped.”

“First of all, the disks are manufactured from nylon, a stronger, denser plastic instead of polypropylene.
Second, if you look closely at all the chains the connector welds are smooth, except on the Grow-Disk chain….see the little knob?  That knob prevents the nylon disk from slipping…the nylon has to break instead of just slipping.”

Chain-Link-closeup_web

“Most feeding chain suppliers buy general purpose chain with the knob removed. By using a chain fabricated “in-house” and designed specifically for feed systems, we can produce a superior product.”

“A strong plastic disk is important because the drive sprocket powering the entire system makes contact with each, single disk for a brief moment.  If an individual disk slips this causes the chain to be slightly out of alignment causing possible jams.”

You can be confident using Grow-Disk chain knowing you are buying the very best even though the cost is usually less.

Hog Slat streamlined distribution system reduces margin stacking.  We manufacture and source products direct to you….eliminating extra dealer margins.

Hog Slat Supply Chain

Good product engineering does not add cost to a product but instead takes manufacturing processes into account to reduce costs. It costs no more to spec a hardened chain with knobs intact to provide a better contact for injecting the nylon disk.  The result is a superior product that lasts longer on your farm.

Grow-Disk systems, read more…

Comments (0)
FARMSTEAD Chickens Growing Appetite

The FARMSTEAD broiler flock has a growing appetite! Feed is always available for them, but when they are really hungry they all want to be at the feeder together. The 30 pound hanging poultry feeder provides plenty of space and the needed capacity to keep multiple days worth of feed available to a smaller flock or meet the feeding needs of a larger flock without having to refill as often. The design of the hanging feeder allows 3 different adjustments to control the amount of feed that flows into the pan which helps reduce wasted feed that might be pushed out of the pan if the level was too high. We started the birds as chicks using the 15 pound hanging poultry feeder, which is the same design but does not feature an adjustable feed flow rate.

30 pound hanging feeder pan

As you can see in the video above, the feeder is hanging from the chicken tractor’s roof frame which serves multiple beneficial purposes. First, when the feeder is hanging as opposed to sitting on the ground, it discourages the birds from trying to scratch the feed and also makes the red edge of the feed pan an unstable platform which discourages the birds from trying to perch or roost on the feeder. Next, when the feeder is hanging you can move the coop without having to pull the feeder out first. Lastly, when the feeder is off the ground it makes it more difficult for ants or other bugs to get into the feed.

Both models of the plastic hanging feeder are easy to clean when they become dirty or after you’ve finished raising your flock. Simply brush loose any solid debris from the feeder, soak in a tub of water and cleaning solution for 10 minutes, wipe down the interior and exterior of the feeder and then rinse clean. Hang the feeder out to dry or wipe down with paper towels and you’ll be ready to refill with feed or store until you need to feed your next flock.



Browse our full selection of FARMSTEAD Equipment to help you raise your poultry at www.hogslat.com/farmstead-equipment.

Comments (0)
FARMSTEAD Chickens Move Outdoors

The FARMSTEAD broiler flock has moved outdoors! Their new home is a custom designed and built mobile “chicken-tractor” coop that is pulled forward one length each day onto fresh grass. This means there is no cleaning the coop floor and fresh grass and bugs to eat every morning. The birds took right to their new surroundings and were eating grass and foraging for bugs within minutes. The flock is now 4 weeks old and feathered enough to stay outdoors full time.

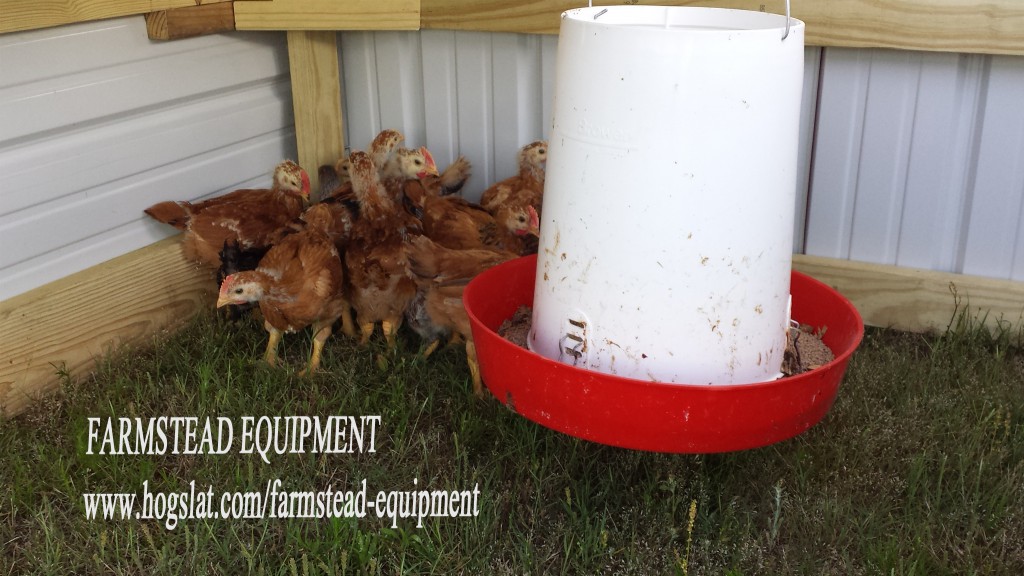

Chickens in Outdoor Tractor_Inside



The coop is built from treated lumber, 29 gauge painted metal and 3′ wide plastic coated metal poultry wire.  Although heavy enough to resist wind and predators, the coop can easily be pulled forward by a single person.



Outdoor Chicken Tractor



Equipped with one 3 nipple drinking bucket and a 30 pound hanging chicken feeder, the coop is plenty big enough for our 13 broiler chickens and has the capacity for around 30-35 grown birds. The feeder and water bucket are easily attached and removed for refilling or cleaning with 1/4″ Zinc Snap Hooks and a short length of stainless steel #1 bowtye chain.

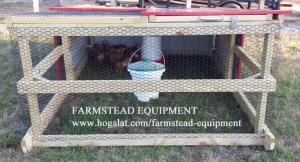

Chickens in Outdoor Tractor_Front



For all your backyard poultry and hog equipment needs, be sure to check out the FARMSTEAD Equipment line at www.hogslat.com/farmstead-equipment.
